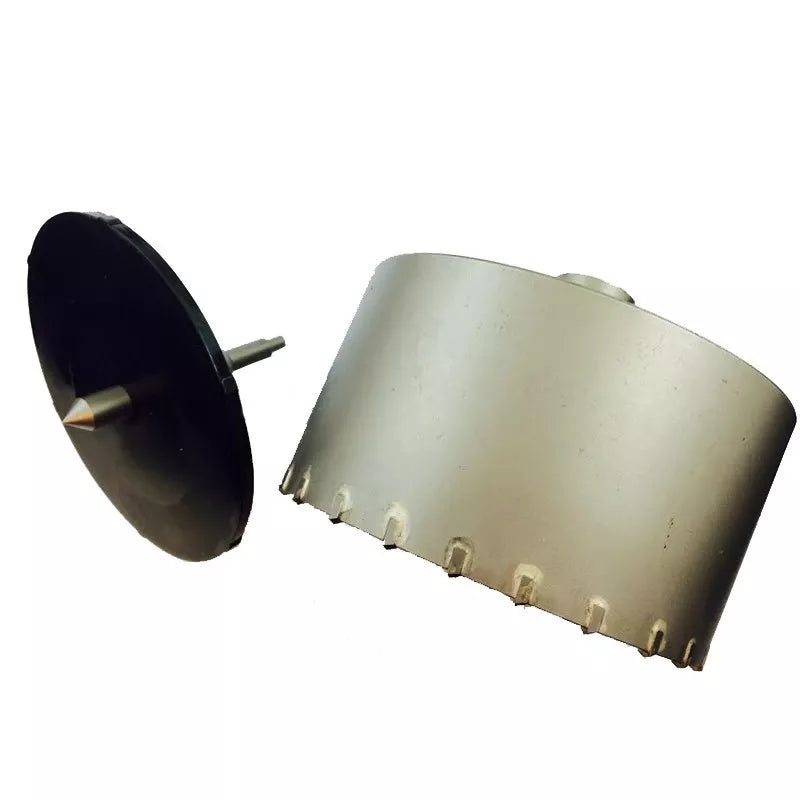

Milwaukee 48-20-5065 SDS-MAX and SPLINE Thin Wall Carbide Tipped Core Bit 6"

Milwaukee's Carbide Tipped Core Bits are ideal for drilling large holes at a relatively shallow depth. The Core Bit cuts a kerf only. Usable depth of the Thin Wall Core Bits ranges from 2-13/16 inches to 3-3/16 inches. The Thin Wall construction is ideal for smaller hammers and newer concrete. The operator must remove the inside core before deeper drilling can be done. Multiple extensions and adapters are available so deeper holes can be drilled. The correct drive shank must be used to drive the Core Bit. The Center Pin and Guide Plate are recommended for positioning and starting a 1-1/4 inch hole and larger. The Center Pin and Guide Plate are NOT recommended for positioning and starting a 1-1/8 inch hole or smaller. Milwaukee Carbide Tipped Core Bits come in 1 inch to 6 inch diameters.

Features:

• Thin Wall Design
• 6 in. Diameter
• Usable Cutting Depth 2-13/16 in.
• Use with 12 in. SPLINE Adapter Shank (48-03-3540) or 12 in. SDS-MAX Adapter Shank (48-03-3574)
• Use With 7-1/2 in. Extension 48-95-6075
• Use With Guide Plate 48-20-6163 and Centering Pin 48-20-6155
• Includes Core Body with Guide Plate & Centering Pin

Specifications:

• Type Masonry Drill Bits
• Diameter 6 in.
• Style Thick Wall for SDS-MAX or Spline
• Cutting Depth 2-13/16 in.

Includes:

• (1) Core Bit Body
• (1) Guide Plate & Centering Pin
